Blasting Hole Drilling Rig Portable Drilling Equipment Mining Quarry DTH Drilling Machine

Name: Blasting Hole Drilling Rig Portable Drilling Equipment Mining Quarry DTH Drilling Machine
Brand: SANROCK
Price: 1 USD

China Blasting Hole Drilling Rig Portable Drilling Equipment Mining Quarry DTH Drilling Machine wholesale

Brand Name : SANROCK

Model Number : S75

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1Set/Sets per Month

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300Set/Sets per Month

Delivery Time : 15-30days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : Integrated Drilling Equipment

Power : 264kw

Power Type : Diesel

Feeding Force : 12 KN

Lifting force : 18KN

Rotary Torque : 3300N.m

Working pressure : 20bar

Air consumption : 19.8m3/min

Rotation Rate : 0-85 rpm

Application : Drilling Rock Drilling Mining Quarry,blasting hole drilling

Feature : High Drilling Efficiency,Hydraulic Controlling,Multifunctional

Grade Ability : 20°

Dimension(L*W*H) : 9920*2700*3300 mm

Weight : 25000 KG

Contact Now

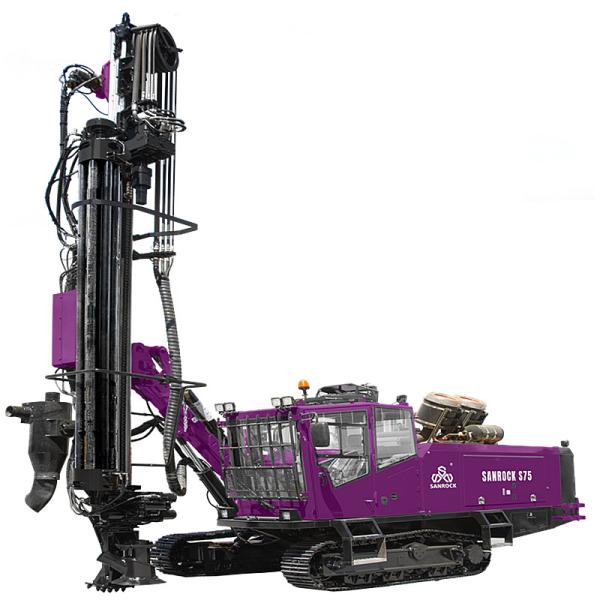

S75 is an All-In-One hydraulic DTH drilling rig, which equipped double cycloid motors can output massive torque and reduce possiblility of pipe-stuck situation. And the rotation rate can be continously adjusted according to differet rock formations. The imported seals for the rotation unit is with extraordinary performance and long service life. The high-output Atlas Copco air compressor features two stages of compression, powerful and realiable.

Blasting Hole Drilling Rig Portable Drilling Equipment Mining Quarry DTH Drilling Machine

The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection. High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost. Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.



It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.

Product Description

Product name	DTH Drilling Machine
Power Type	Diesel
Key Selling Points	High efficiency, high production capacity,Competitive Price
Application	Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works

Working Pressure	20 bar
Max. FAD	19.8 m³/min
Feeding Stroke	4750 mm
Feed Extension	1100 mm
Engine Model	QSL8.9-C360-30
Engine Type	Water-cooled Six-cylinder EFI Diesel Engine
Rared Power	264/2100 kw/rpm
Fuel Tank Capacity	600 L
Rotation Rate	0-85 rpm
Max. Rotation Torque	3300Nm
Feeding Method	Hydraulic Motor+Chain
Feeding Force	12 KN
Lifting Force	18 KN
Track Width	350 mm
Ground Clearance	≥400 mm
Track Oscillation	±10°
Walking Speed	2/3 km/h
Grade Ability	20°
Collecting Method	Hydraulic Dust Collecting

Blasting Hole Drilling Rig Portable Drilling Equipment Mining Quarry DTH Drilling Machine

Company Information

Blasting Hole Drilling Rig Portable Drilling Equipment Mining Quarry DTH Drilling Machine

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
