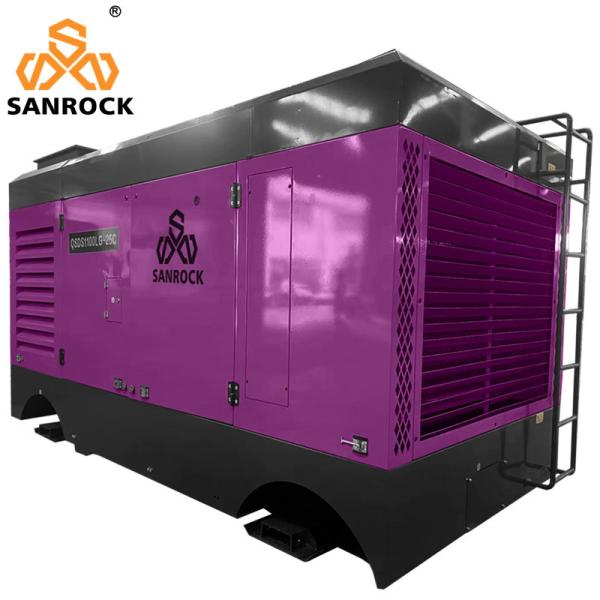

High Pressure Mining Screw Air Compressor Machine 294KW

Name: High Pressure Mining Screw Air Compressor Machine 294KW
Brand: SANROCK
Price: 1 USD

China High Pressure Mining Screw Air Compressor Machine 294KW wholesale

Brand Name : SANROCK

Model Number : QSDS1100LG-25C

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Set/Sets per Month

Delivery Time : 12-20days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : Screw Air Compressor Machine

Name : Mining Screw Air Compressor

Power source : Diesel

Engine Brand : Cummins

Motor power : 294KW

Working pressure : 25bar

Emission standard : Stage III

Capacity : 31m3/min

Fuel tank capacity : 650L

Max. working/ idle speed : 1900/1400rpm

Application : water well drilling,mining rock blasting,hole drilling

Exhaust port specifications * Quantity : G2*1 & G3/4*1

Feature : High Drilling Efficiency,High Productivity,Competitive Price

Configuration : Stationary

Cooling method : Both Air/Water Cooling Available

Condition : New

After-sales service provided : Online support

Dimension(l*w*h) : 3800x1800x2050mm

Weight : 4800 KG

Type : Screw air compressor

Warranty : 1 Year

Contact Now

High Pressure Mining Screw Air Compressor Machine 294KW

1. Full series product optimized for stronger frame and better towing protection and safety; stronger roof loading capabilities to meet customer load carry needs with rubber protection strips.

2. All pressure pipes are connected with steel tubes, it has excellent sealing and protect rubber from prevent aging, abrasion resistance and has attractive appearance.

3. Designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber horse damage.

4. All new designed cooler with independent modular unit and secured by structural component with cushion pad without any pressure points, effectively eliminating cooler damage by shroud deformation; independent damage unit placement made easy without removing the cooler assembly.

5. New designed protected cooler for higher efficiency and better safety protection. Full body sound absorbent cotton and rear car silencer designed to make operate noise reduce 40% less than normal products.

6.Large stand-alone capacity, no clearance volume, reasonable structure and ideal force balance, long life of the host, easy maintenance and few wearing parts.

7.To add to the benefits of the portable compressors,this series specially good for continues running and with transportation requirement in consideration,upgraded for better durability and lower fuel consumption.

High Pressure Mining Screw Air Compressor Machine 294KW

Screw Air Compressor Machine High Pressure Air Compressor Mining Screw Air Compressor

Products Description

Brand Name:Sanrock
Product name: screw air compressor
Model Number:QSDS1100LG-25C
Emission standard:Stage III
Fuel tank capacity :650L
Exhaust port specifications * Quantity:G21 & G3/41
Air end:two stage compression
Working condition:three-condition
Max. working/ idle speed:1900/1400rpm
Motor power:294kw
Diesel Engine Brand:Cummins
Working pressure:25bar
Capacity:31m3/min
Application:water well drilling,mining rock blasting,hole drilling
Demensions (LWH):3800x1800x2050mm
Weight:4800kg
Certification:CE

High Pressure Mining Screw Air Compressor Machine 294KW

Company Profile

High Pressure Mining Screw Air Compressor Machine 294KW

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
