Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine

Name: Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine
Brand: SANROCK
Price: 1 USD

China Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine wholesale

Brand Name : SANROCK

Model Number : SR350S

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000Set/Sets per Month

Delivery Time : 15-25days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : Water Well Drilling Rig, Water Well Drilling Machine

Name : Water Well Drilling Equipment ,Crawler Water Well Drilling Rig

Feature : High Drilling Efficiency,Hydraulic Controlling,Multifunctional

Application : water well drilling rig,agricultural irrigation wells

Type : Rotary Drilling Rig

Power Type : Diesel

Usage : Water Well

Power(w) : 92KW

Drilling depth : 100m/200m/300m/350m

Drilling diameter : 105-305mm

Lifting force : 18T

Rotary torque : 4000-8000N.m

Rotary Speed : 60-120r/min

Air pressure : 1.2-3.5Mpa

Air consumption : 16-55 m³/min

Axial pressure : 3T

Walking speed : 2.5km/h

After-sales service provided : Video technical support

Dimension(l*w*h) : 6000*1700*2200mm

Weight : 7500KG

Contact Now

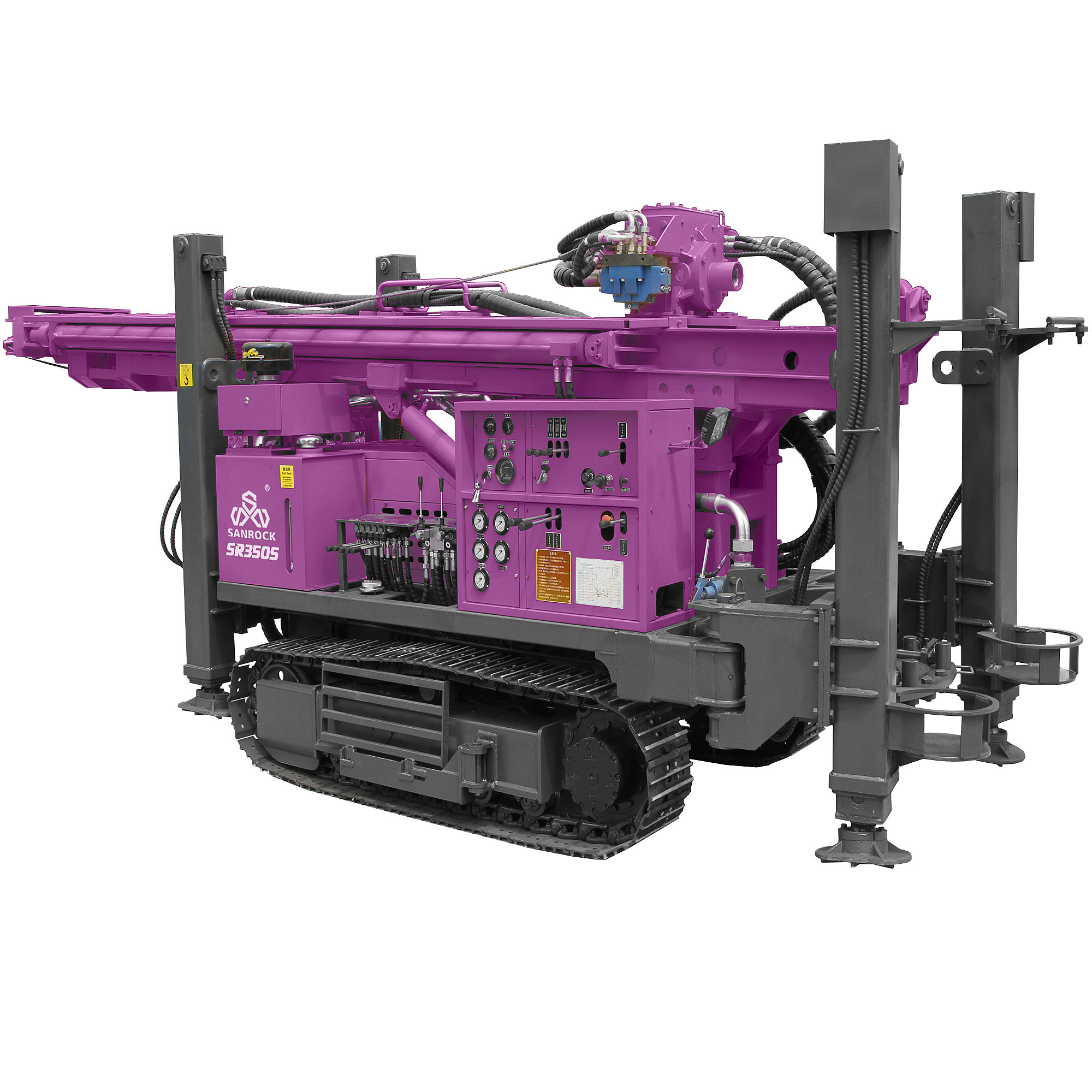

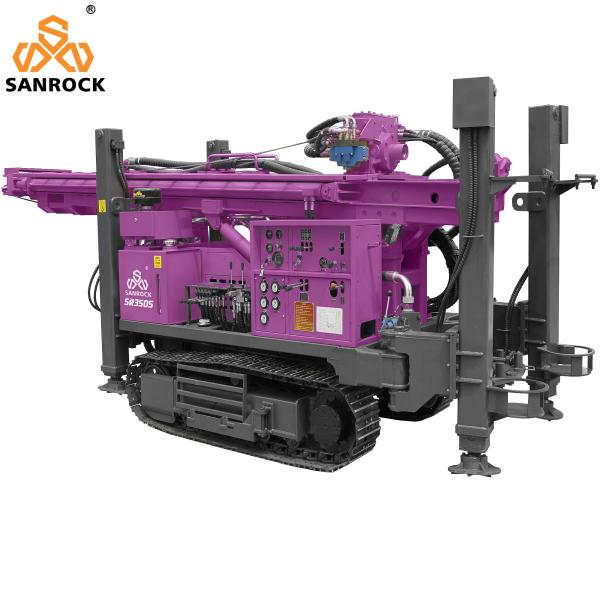

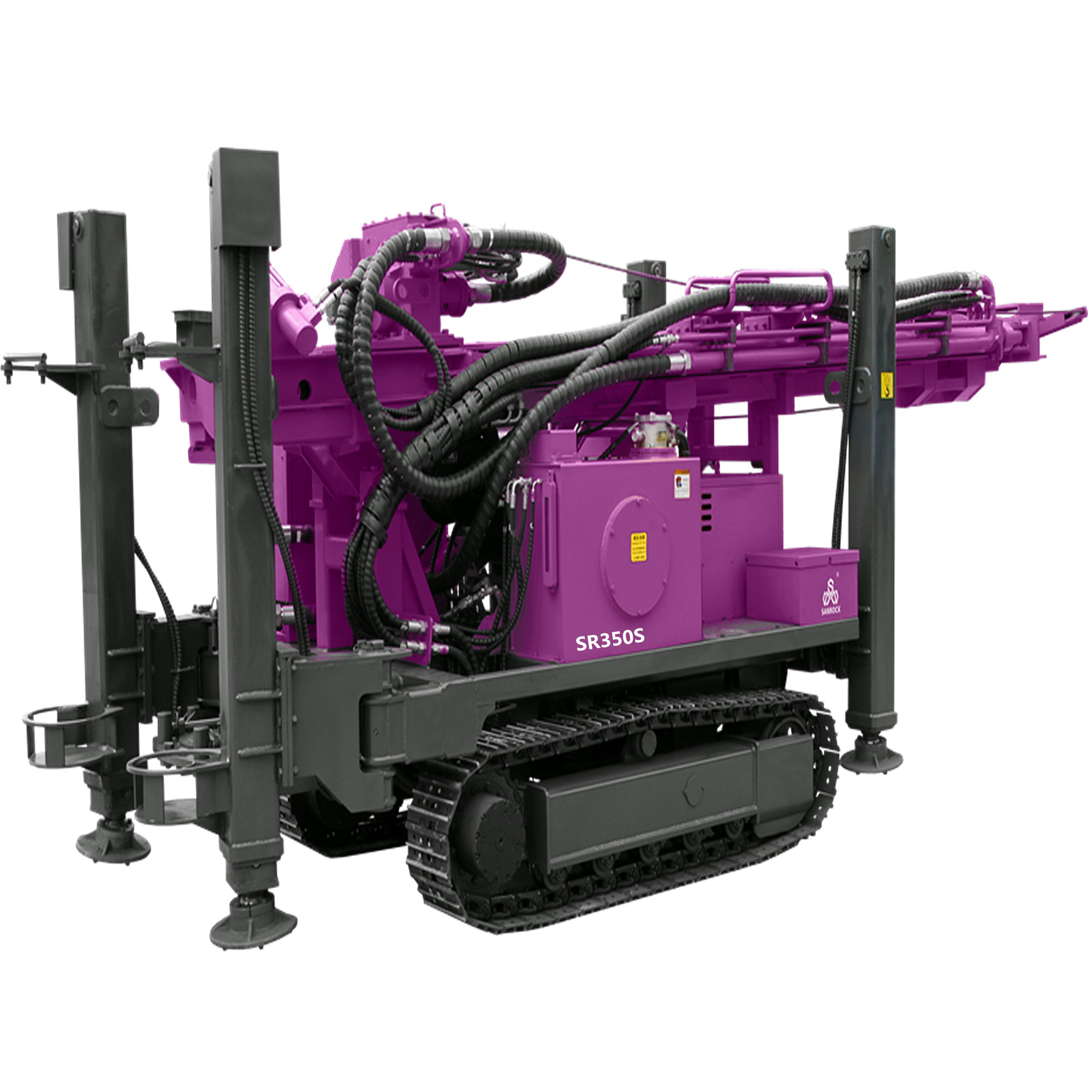

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine

Top-drive type, high-efficiency, multi-functional fully hydraulic drilling rig features advanced technology, easy use, high operating efficiency, reliability and durability. This drilling rig is widely used in drilling water wells, detection wells, dewatering wells, rescue wells, ground source air conditioning holes, coal bed methane, natural gas, oil exploration and other projects.

1.The drilling rig can use with air compressor for DTH drilling in various formations in high-temperature areas, alpine areas and plateau areas, in the range of Plattes hardness f=4-20 drilling holes in the rock has a high drilling speed.

2.Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable. The main engine is equipped with a high-power diesel engine with strong power to meet work needs.
 3.Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.

4.Centralized operating handles, reasonable layout, safe and feasible. Excellent workmanship, durable, and low maintenance costs.

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine

Products Description

Model	Unit	SR350S
Max drilling depth	M	350
Drilling diameter	mm	105-305
Engine brand	/	Cummins
Power	kw	92
Rotary motor brand	/	Eaton
Pump brand	/	Permco
Air pressure	Mpa	1.2-3.5
Air consumption	m³/min	16-55
Drill pipe length	m	6
Drill pipe diameter	mm	89
Axial pressure	T	3
Lifting force	T	18
Fast lifting speed	m/min	30
Fast feeding speed	m/min	60
Max rotary torque	Nm	8000/4000
Max rotary speed	r/min	60/120
Big auxiliary winch lifting force	T	/
Small auxiliary winch lifting force	T	1.5
Jacks stroke	m	1.45
Drilling efficiency	m/h	10-35
Moving speed	Km/h	2.5
Uphill angle	/	21°
Weight	T	7.5
Dimension	mm	600017002200
Working condition	/	Unconsolidated formation and stone head
Drilling method	/	Top drive hydraul ic rotary and pushing, hammer or mud drilling

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine

Company Profile

Hydraulic Water Well Drilling Rig Equipment Crawler Deep Water Well Drilling Machine

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

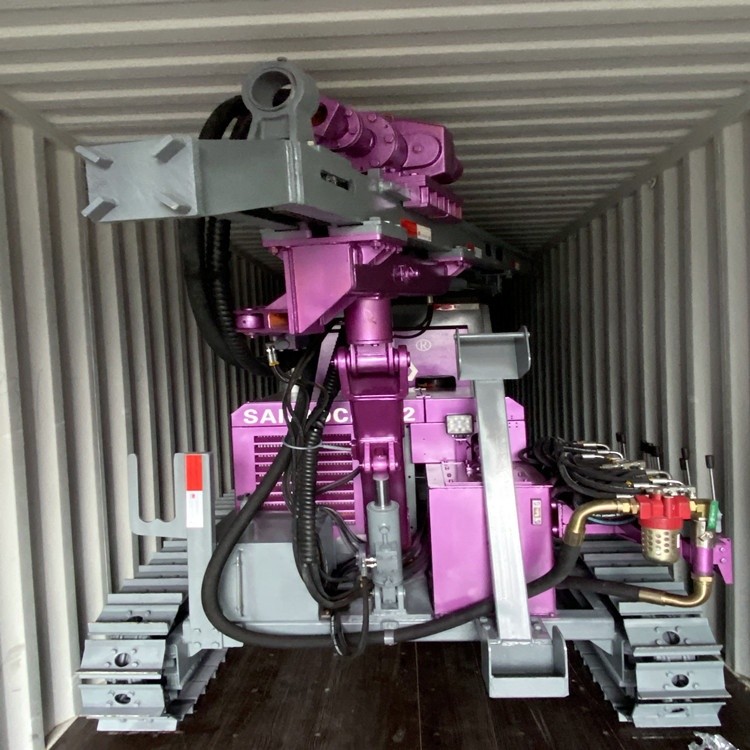

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
