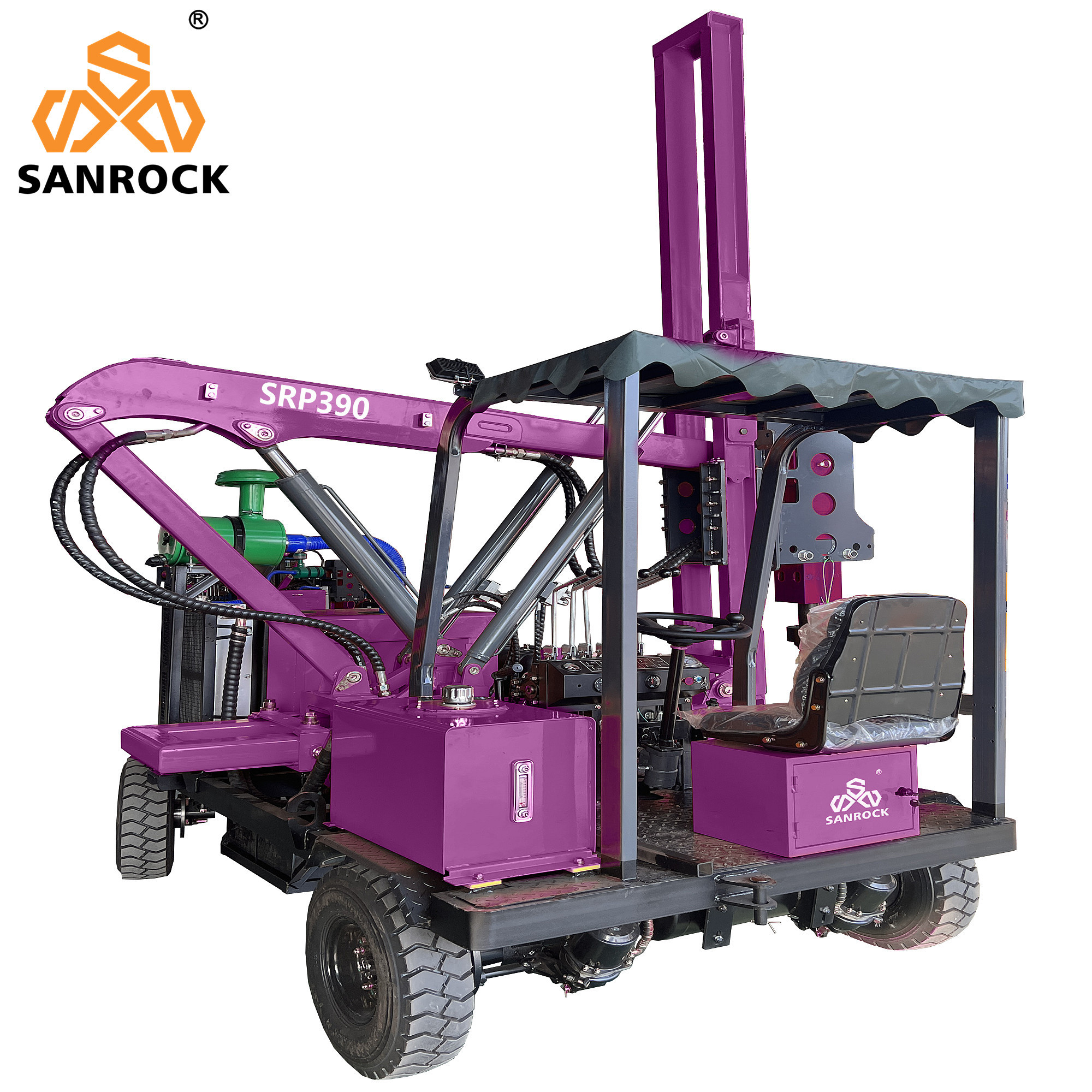

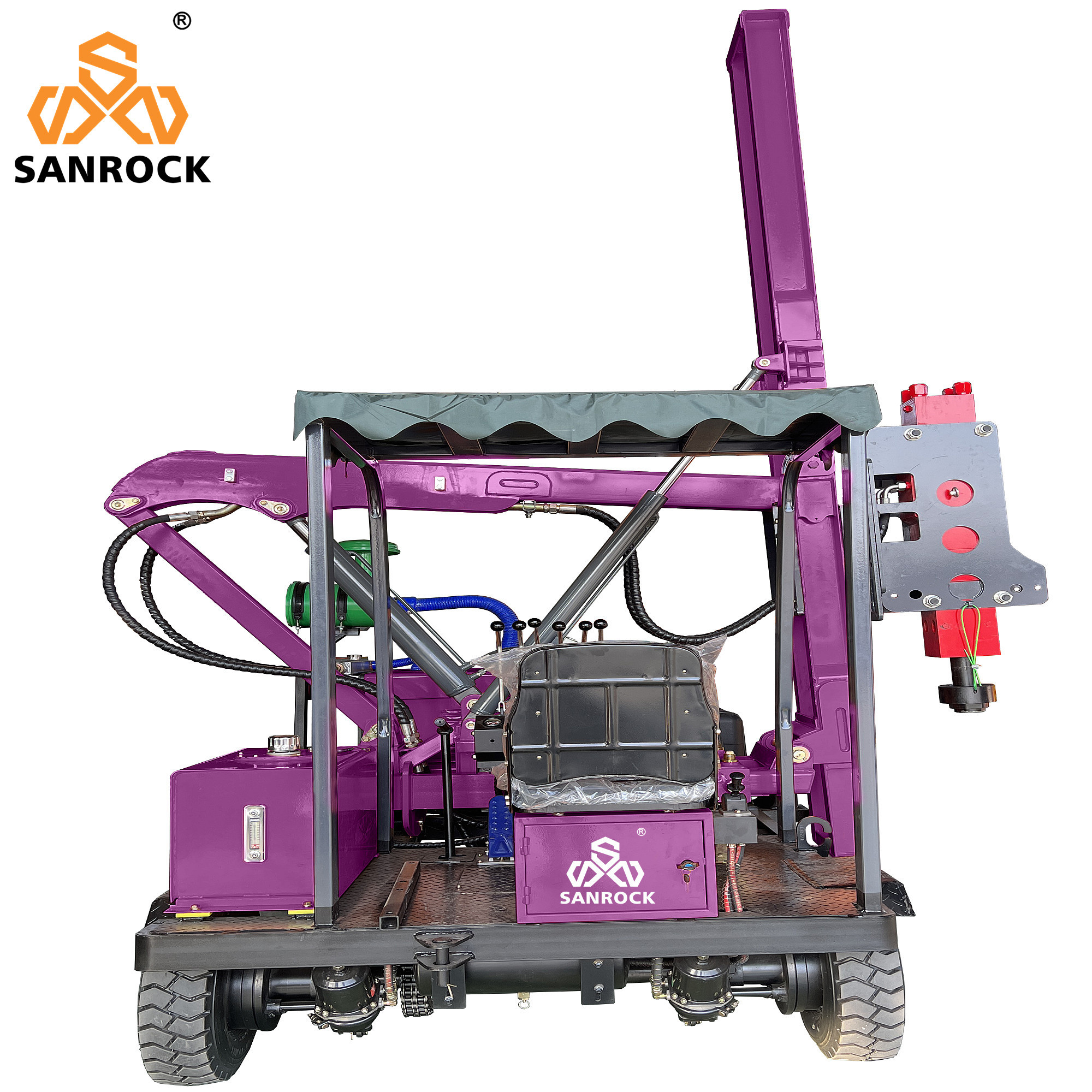

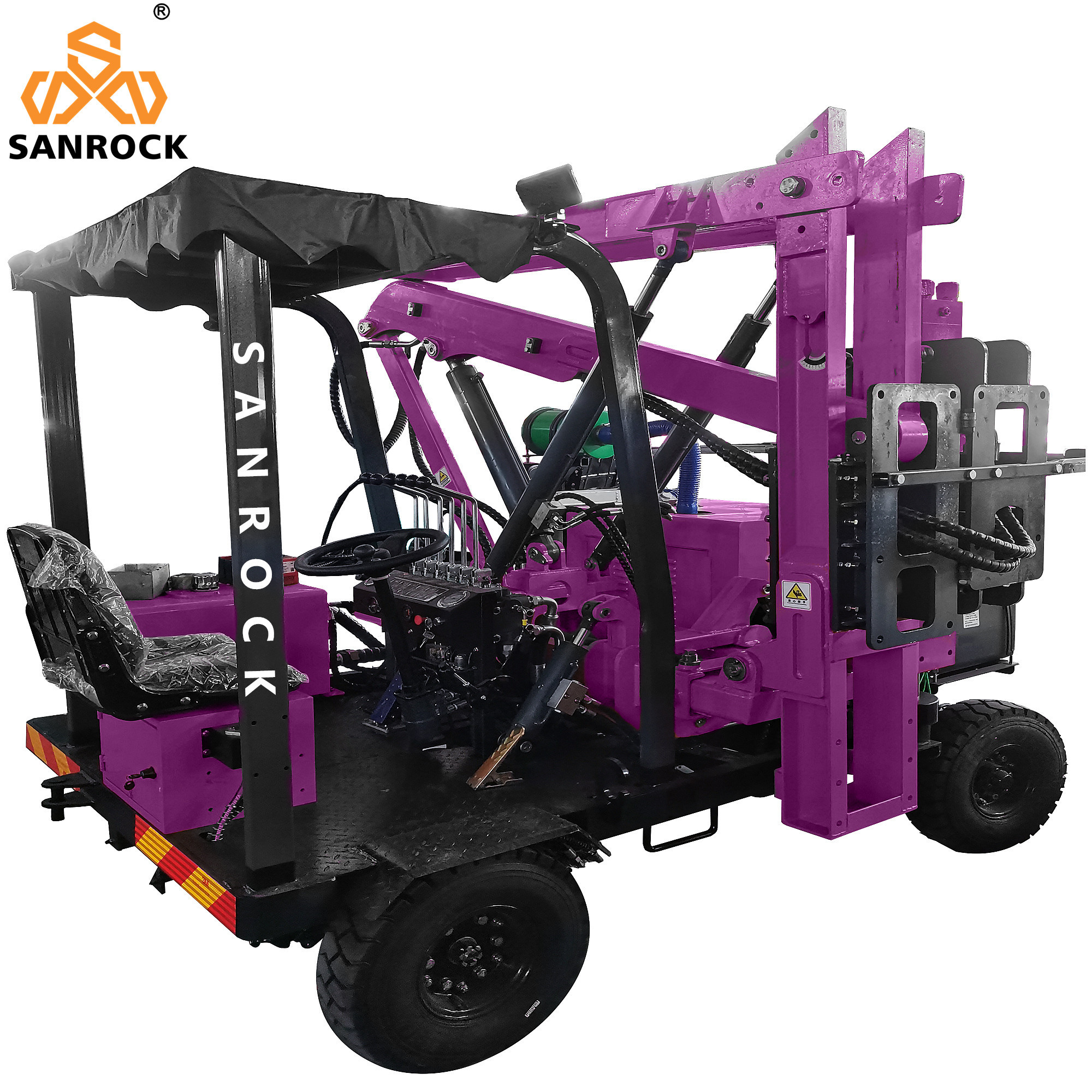

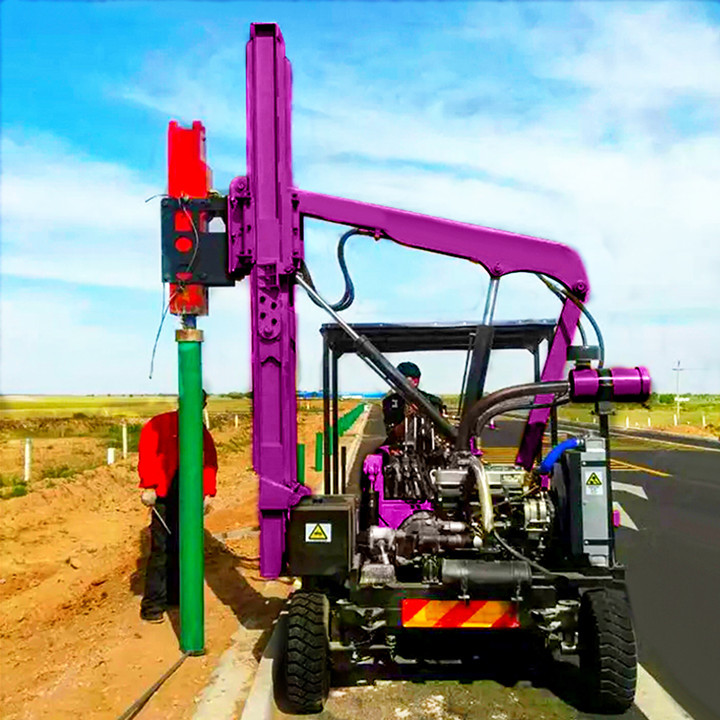

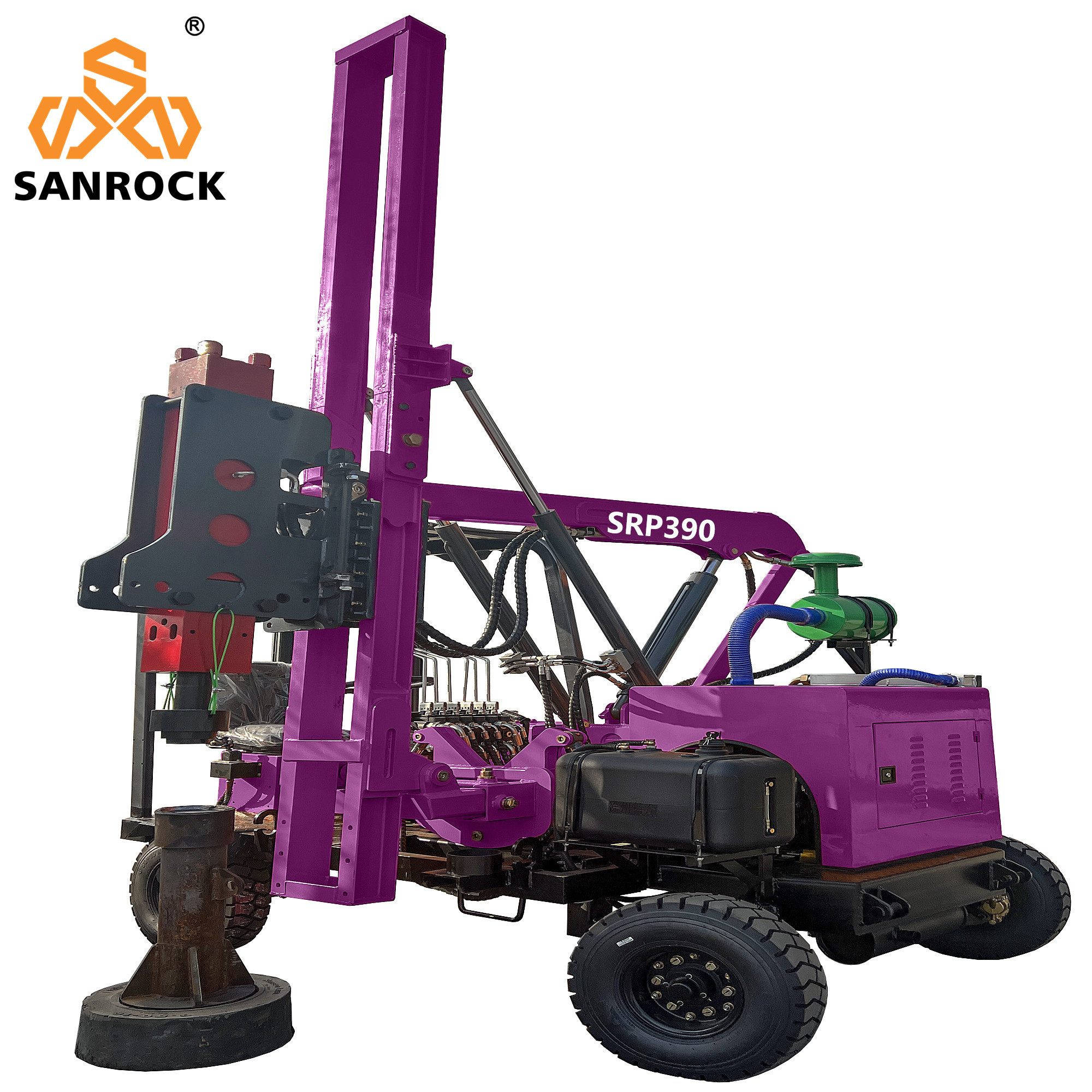

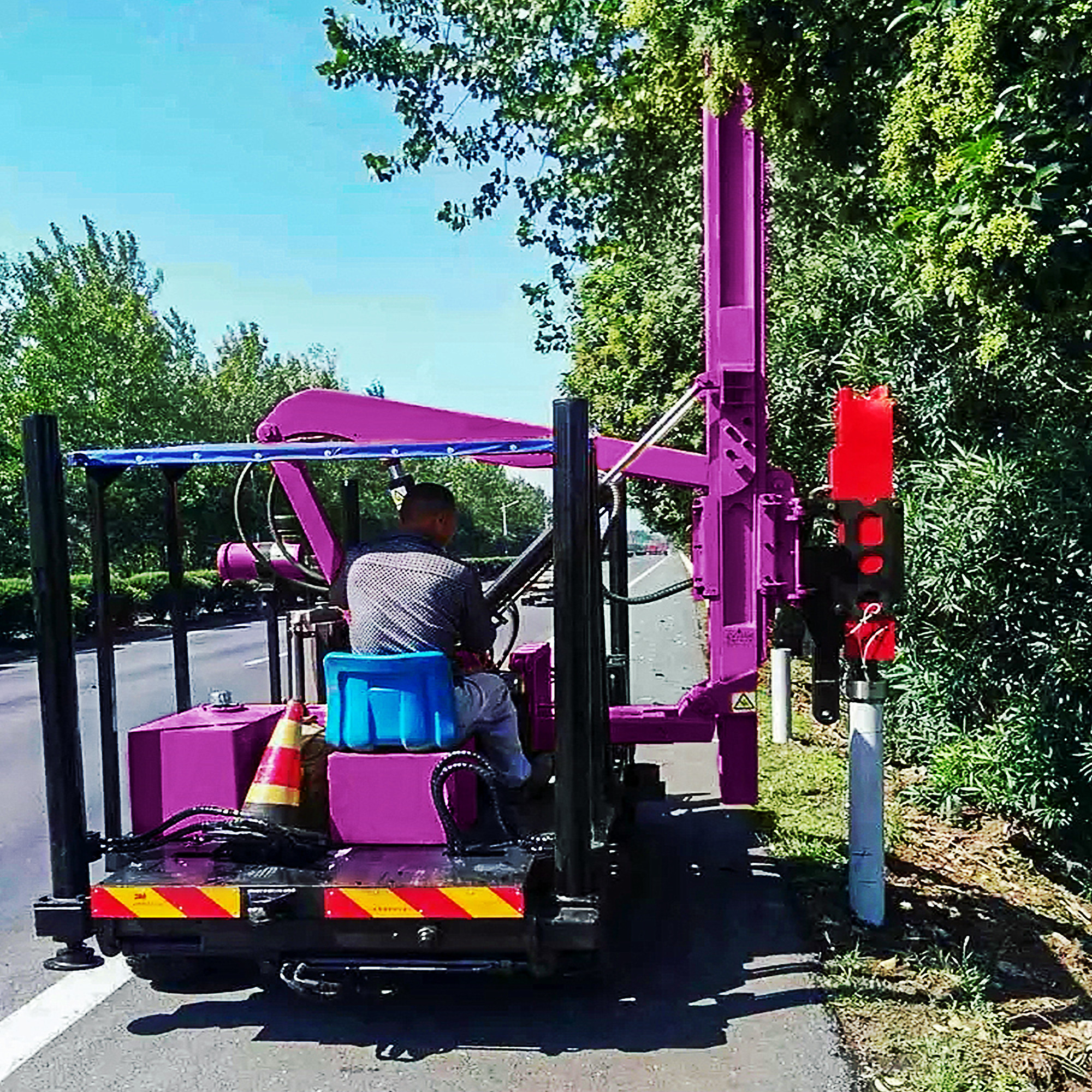

SRP390 is our wheeled iple driver, main work for road guardrail. With different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Feature:
1.Pile Driver which has good heat dissipation, it also has small size and good looking apperance.
2.Easy to drive and operate, efficient working system.
3.Impacting head can also change to work with DTH tools through air compressor.
Pile Drilling Rig Vibration Hammer Pile Driver Machine Portable Pile Driving Equipment
Products Description
| SRP390 Wheeled Road Pile Driver Technical Parameters | | Engine power(KW) | 38/42 | | Hammer pressure(Mpa) | 15-18 | | Hammer rail stroke(mm) | 480～2950 | | Piling efficiency(mm/min) | 2200±30 | | Piling length(mm) | ≥2700 | | Drilling diameter(mm) | Φ50,Φ60,Φ100,Φ120,Φ150,Φ160,Φ180... | | Drilling depth(mm) | ≤1700 | | Traction speed(Km/h) | ≤30 | | Self speed(Km/h) | 10～19 | | Hydraulic oil tank capacity(L) | 70 | | Diesel tank capacity(L) | 56 | | Dimension(mm) | 3070x2480x2240x(flod)3950 | | Weight(kg) | 3200 | | |
